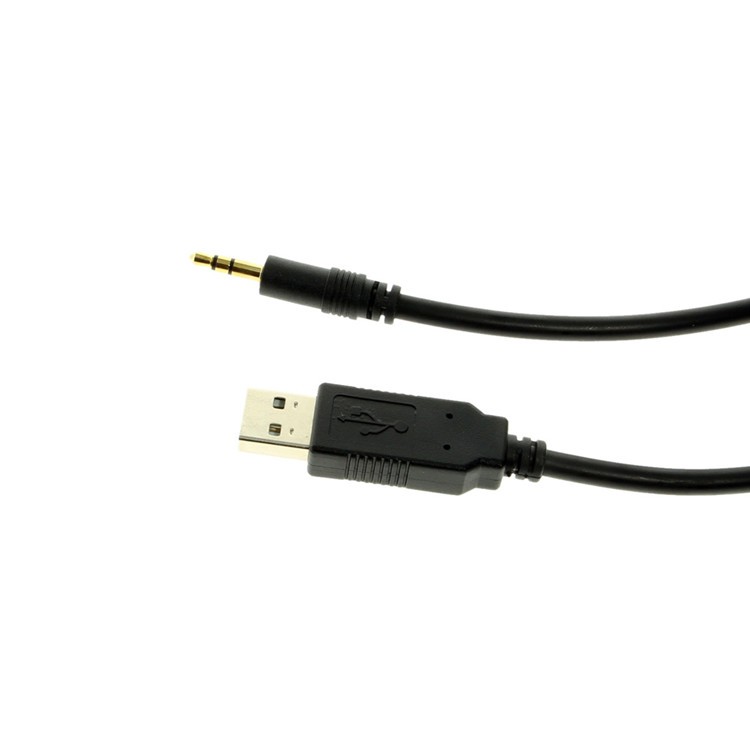

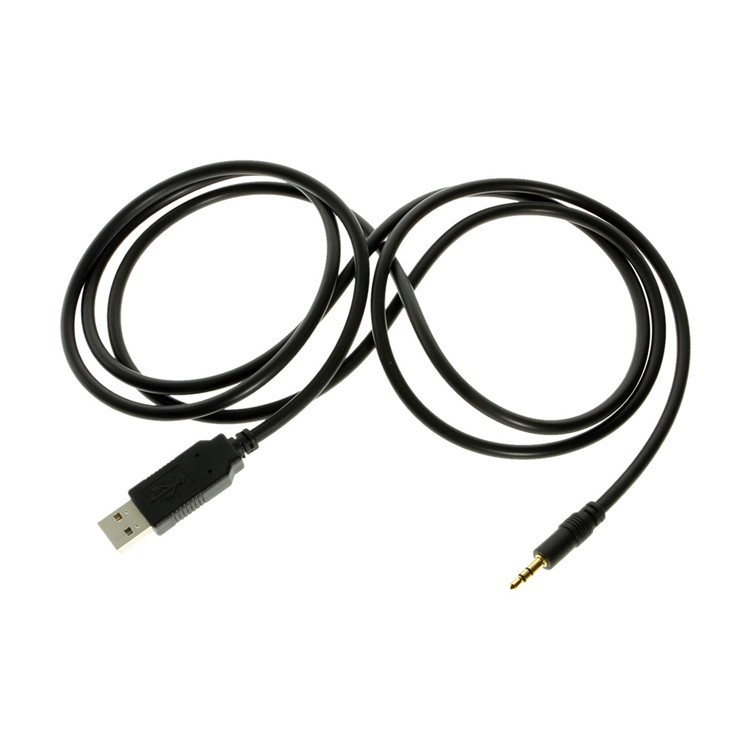

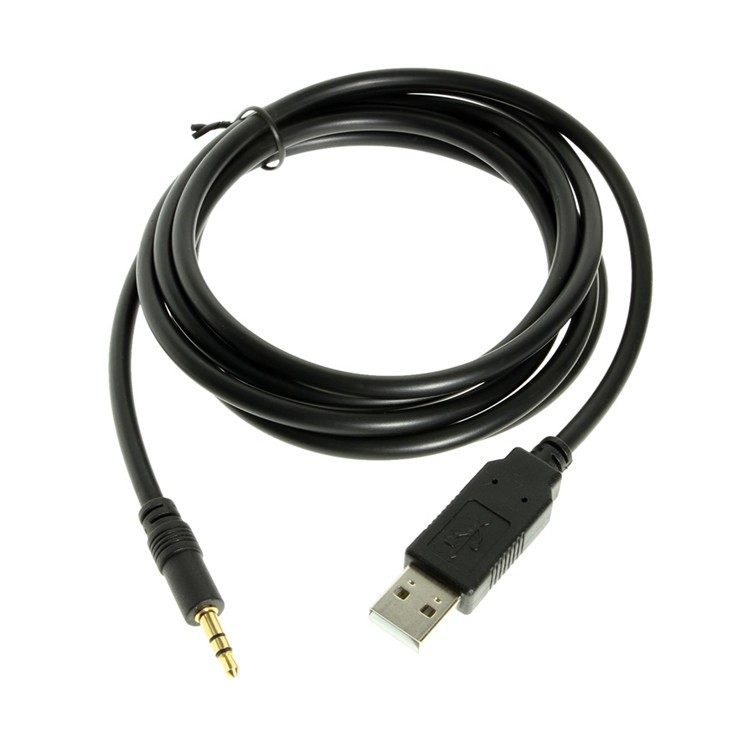

USB FT232RL to 3.5mm TTL Stereo Jack Serial Cable

优质产品

PRODUCT DESCRIPTIONUSB FT232RL to 3.5mm TTL Stereo Jack Serial CableUSB TTL Serial Cable allows easy interfacing to devices over USB. The USB TTL Serial cable provide connectivity between USB and serial UART interfaces at 5V. 3.5mm audio jack input/output.Connector configuration: tip-TxD,ring - RxD,

浏览： 0 次

更新： 2025-01-08

立即询价

PRODUCT DESCRIPTION

USB FT232RL to 3.5mm TTL Stereo Jack Serial Cable

USB TTL Serial Cable allows easy interfacing to devices over USB. The USB TTL Serial cable provide connectivity between USB and serial UART interfaces at 5V. 3.5mm audio jack input/output.
Connector configuration: tip-TxD,ring - RxD, sleeve- GND
Cable with audio jack connector with +5V based TxD and RxD signalling

USB TTL Serial Cable allows easy interfacing to devices over USB.
The USB TTL Serial cable provide connectivity between USB and serial UART interfaces at 3.3V or 5V.
3.5mm audio jack input/output.

PRODUCT SPECIFICATION

	Parameters
Color	Black
Length	1.8m
Jacket	PVC
Type	USB to Serial TTL Cable (OEM FTDI Cable)
Connector 1	USB A Male
Connector 2	6Pin connector,6 open wires,3.5MM Plug optional
Cable	3 core, 4 core, 6 core available
Pinout	VCC, TXD, RTS, RXD, CTS, GND
Support	WINDOWS7/8/98/ME/2000/XP,Vista32,Mac8.6 or later,LINUX O.S,etc
Application	Computer
Warranty	Lifetime
